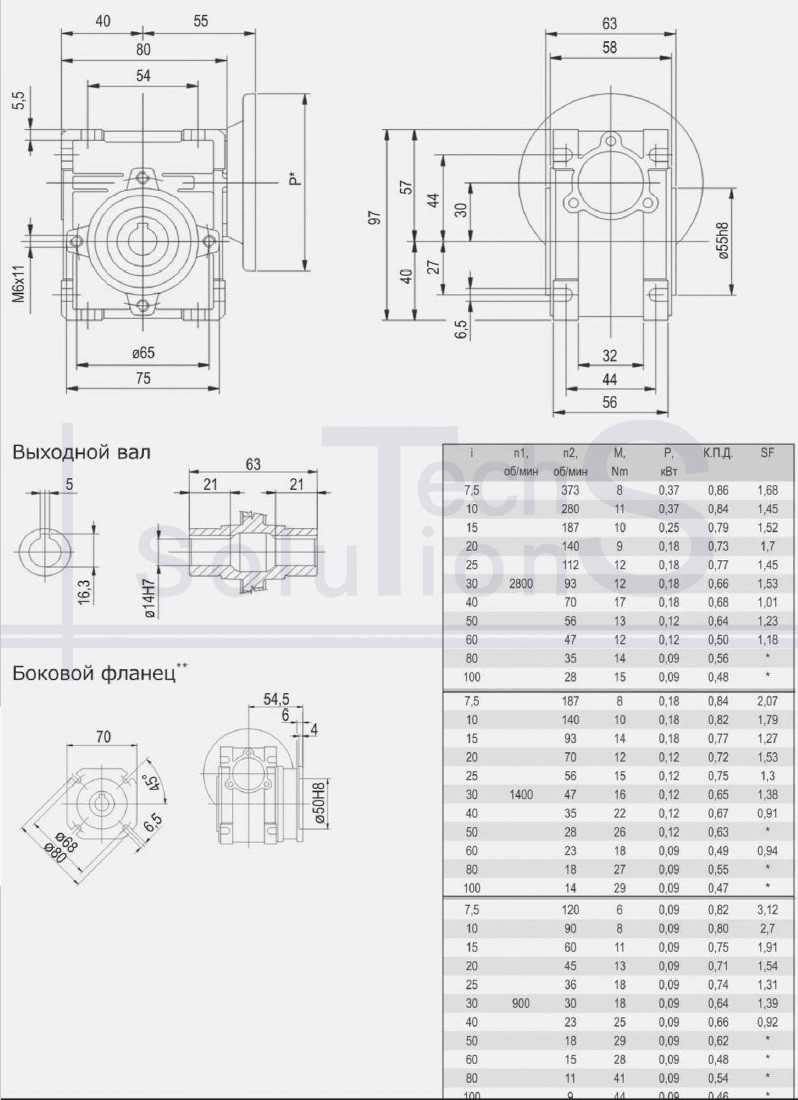

Worm gear NMRV 30 25 IEC63B5 CT-DRIVE
i 25 :1 ratio
30 gearbox size
14 mm output shaft
Specifications
NMRV 30 25 IEC63B5 CT-DRIVE
- Designation
- NMRV 30 25 IEC63B5
- Manufacturer
- CT-DRIVE
- Reducer dimensions
- 30
- Gear ratio
- 25
- Hollow input shaft diameter
- 11 mm
- Hollow output shaft diameter
- 14 mm
- Reducer weight
- 1.2 kg
- Input flange outer diameter
- 140 mm
SELLER
Tech Solutions Sp. z o.o.
In the KRS register since 2012 verify ↗
KRS 0000429411 · entered 09.08.2012
Łódź, same address since 2014
ul. Wersalska 47/75, lok. 181, 91-212 Łódź
EU VAT number active verify ↗
PL7292701947
Financial statements with auditor's opinion verify ↗
For 2016–2025, no entries on debts or liquidation (as of 09.2026)
Product summary
NMRV 30 25 IEC63B5: worm gear, brand CT-DRIVE. Reducer dimensions: 30, gear ratio: 25, hollow input shaft diameter 11 mm, hollow output shaft diameter 14 mm, reducer weight, kg: 1,2, input flange outer diameter 140 mm.
Technical data is for information only. Drawings may not show all design features.
About the technical data
* - Technical specifications and other information are provided for reference only. We provide this data and believe the information to be reliable, however, no guarantee of accuracy or completeness of such information can be provided.
- Drawings and images may not reflect all design features of the product.
