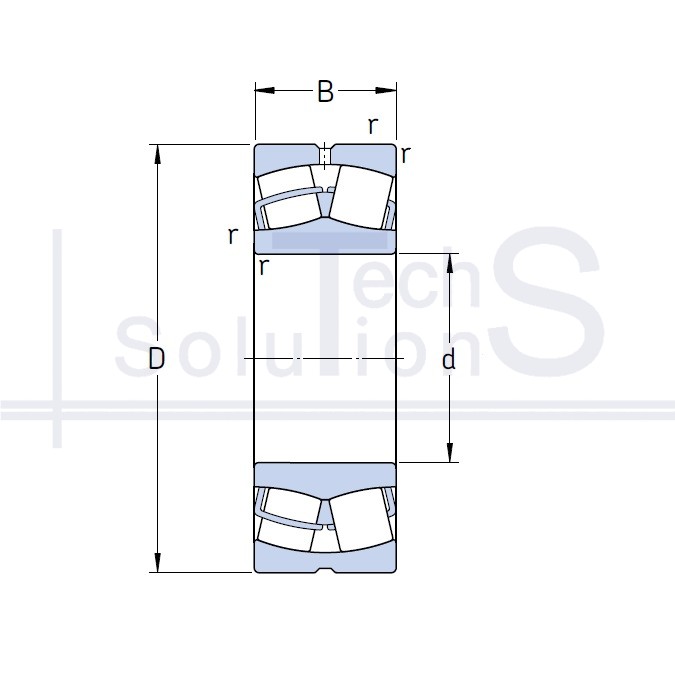

Spherical roller radial bearing 22244 CC/W33 SKF 220 × 400 × 108 mm
Specifications
22244 CC/W33 SKF
- Designation
- 22244 CC/W33
- Manufacturer
- SKF
- Inner diameter d
- 220 mm
- Outer diameter D
- 400 mm
- Width B
- 108 mm
- Dynamic load rating C
- 1760 kN
- Static load rating C0
- 2 360 kN
- Limiting speed
- 2 000 rpm
- Nominal speed
- 1 500 rpm
- Weight
- 60.5 kg
- Chamfer radius r
- 4 mm
- Rolling elements
- Spherical roller bearings
- Load type
- Radial
- Number of rows
- Double-row
- Mounting hole
- Cylindrical
Product summary
22244 CC/W33: spherical roller bearing, brand SKF. Bore diameter d 220 mm, outside diameter D 400 mm, width B 108 mm. Dynamic load rating C 1760 kN, static load rating C0 2360 kN, limiting speed 2000 rpm, weight 60.5 kg.
Two rows of barrel-shaped rollers on the spherical raceway of the outer ring: high load capacity combined with compensation of misalignment. For heavy and shock loads at low and medium speeds.
Where it is used
Vibrating screens and sieves, belt conveyor pulleys, crushers, mills, high-power fans, long line shafts that deflect. The spherical outer raceway compensates for misalignment of supports in a welded frame that cannot be corrected by machining.
When not to use
Do not fit it instead of a deep groove ball bearing in a high-speed assembly: in the same size, a spherical roller bearing can have a limiting speed several times lower, so the assembly will overheat and push grease out through the seals. The reverse swap costs even more: if the supports are misaligned, any rigid bearing will run on the edge of the raceway and start spalling within a few hundred hours.
Technical data is for information only. Drawings may not show all design features.
