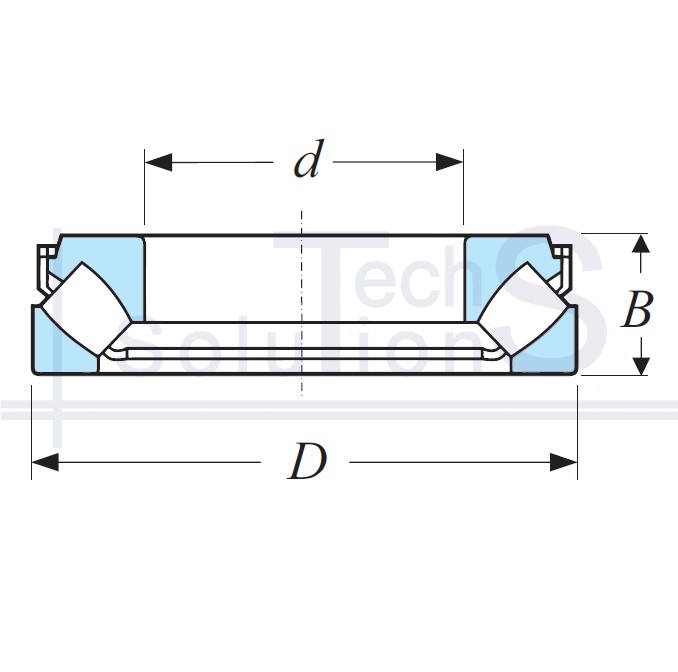

Spherical roller thrust-radial bearing 29436 M CT 180 × 360 × 109 mm
Specifications
29436 M CT
- Designation
- 29436 M
- Manufacturer
- CT
- Inner diameter d
- 180 mm
- Outer diameter D
- 360 mm
- Width B
- 109 mm
- Dynamic load rating C
- 2600 kN
- Static load rating C0
- 7 350 kN
- Limiting speed
- 1 800 rpm
- Nominal speed
- 1 000 rpm
- Weight
- 62.5 kg
- Rolling elements
- Roller spherical
- Load type
- Axial and radial
Product summary
29436 M: spherical roller thrust bearing, brand CT. Bore diameter d 180 mm, outside diameter D 360 mm, width B 109 mm. Dynamic load rating C 2600 kN, static load rating C0 7350 kN, limiting speed 1800 rpm, weight 62.5 kg.
Spherical rollers set at an angle to the axis: carries axial load together with radial load and compensates for misalignment. Used in heavily loaded assemblies, including vertical shafts.
Where it is used
Vertical shafts under constant axial pressure: cone crushers, vertical mills, pump and propeller shaft thrust bearings, extruders, crane hooks, hydro turbines. Works where the shaft deflects under load while the support must remain aligned.
When not to use
It does not work as a radial support: radial load is permissible only together with axial load and up to about 55% of it. It does not tolerate unloading: without a minimum axial force the rollers slide. In a high-speed assembly it does not replace a thrust ball bearing, as its limiting speed is an order of magnitude lower.
Technical data is for information only. Drawings may not show all design features.
