Hub bearing F 200004 CT 105 × 160 × 170 mm
Specifications
F 200004 CT
- Designation
- F 200004
- Manufacturer
- CT
- Inner diameter d
- 105 mm
- Outer diameter D
- 160 mm
- Height T
- 170 mm
- Weight
- 6.86 kg
Product summary
F 200004: wheel hub bearing, brand CT. Bore diameter d 105 mm, outside diameter D 160 mm, mounting height T 170 mm. Weight 6.86 kg.
A ready-made double-row unit for a wheel hub: clearance is set at the factory, seals and grease are built in. It cannot be dismantled or adjusted.
Where it is used
Wheel hubs of passenger cars, light trucks and trailers. Some designs have a flange and an ABS sensor ring, in which case the unit also measures wheel speed.
When not to use
It is not dismantled or replaced by a pair of separate bearings of the same dimensions: the preload is set at the factory, and the seals and sensor ring are part of the unit, not an accessory. The reverse also applies: where the clearance is adjusted with a nut during assembly, a ready-made unit is not fitted.

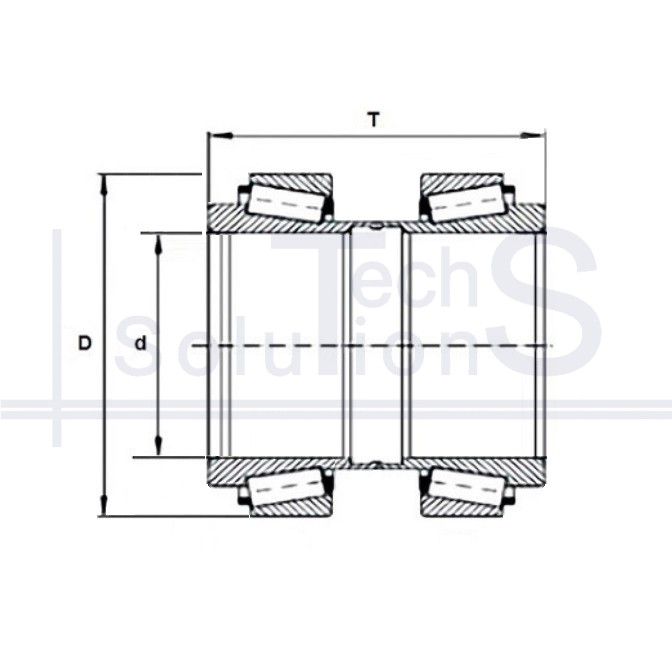

Technical data is for information only. Drawings may not show all design features.
About the technical data
* - Technical specifications and other information are provided for reference only. We provide this data and believe the information to be reliable, however, no guarantee of accuracy or completeness of such information can be provided.
- Drawings and images may not reflect all design features of the product.
