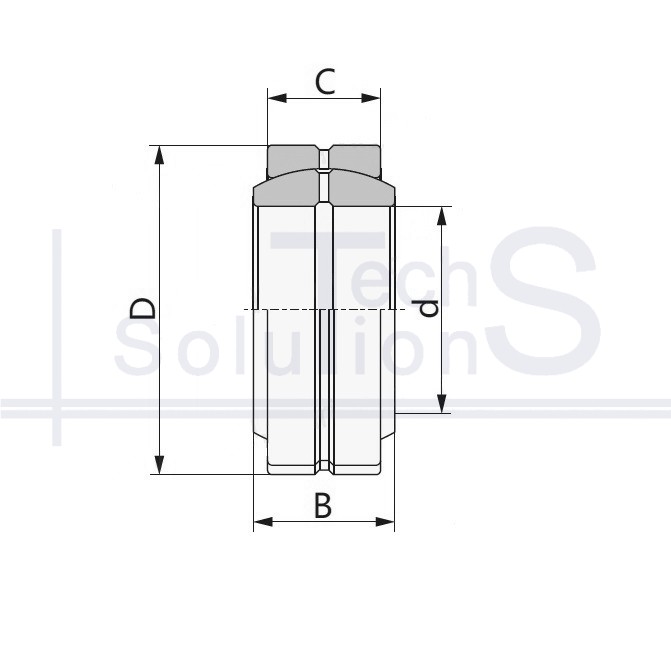

Radial spherical plain bearing GE 80 ES CT 80 × 120 × 55 mm
= GE 80 ES NTE CT Brand Certificate
d 80 mm bore
D 120 mm outside diameter
B 55 mm width
Specifications
GE 80 ES CT
- Designation
- GE 80 ES
- Manufacturer
- CT
- Inner diameter d
- 80 mm
- Outer diameter D
- 120 mm
- Width B
- 55 mm
- Dynamic load rating C
- 400 kN
- Static load rating C0
- 2 000 kN
- Weight
- 2.31 kg
- Outer ring width C
- 45 mm
- Chamfer radius r
- 1 mm
SELLER
Tech Solutions Sp. z o.o.
In the KRS register since 2012 verify ↗
KRS 0000429411 · entered 09.08.2012
Łódź, same address since 2014
ul. Wersalska 47/75, lok. 181, 91-212 Łódź
EU VAT number active verify ↗
PL7292701947
Financial statements with auditor's opinion verify ↗
For 2016–2025, no entries on debts or liquidation (as of 09.2026)
Product summary
GE 80 ES: spherical plain bearing, brand CT. Bore diameter d 80 mm, outside diameter D 120 mm, width B 55 mm. Dynamic load rating C 400 kN, static load rating C0 2000 kN, weight 2.31 kg.
Technical data is for information only. Drawings may not show all design features.
