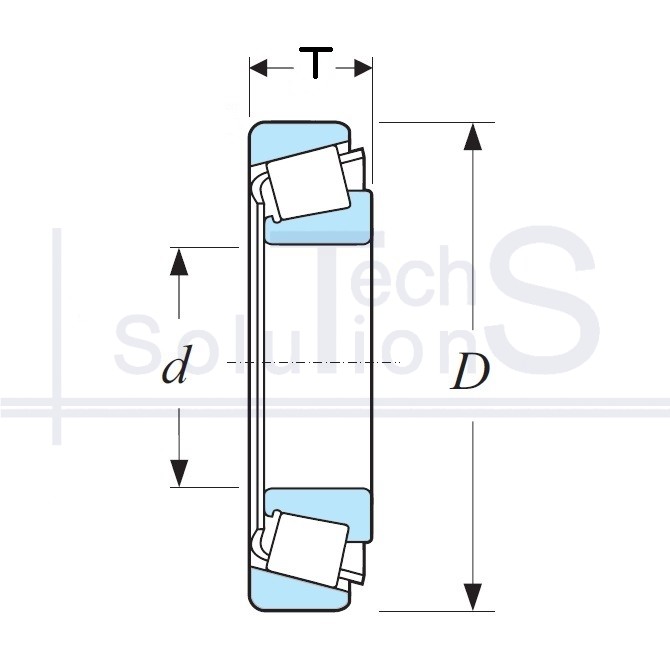

Tapered roller bearing 32316 CT 80 × 170 × 61.5 mm
Specifications
32316 CT
- Designation
- 32316
- Manufacturer
- CT
- Inner diameter d
- 80 mm
- Outer diameter D
- 170 mm
- Height T
- 61.5 mm
- Width B
- 58 mm
- Dynamic load rating C
- 380 kN
- Static load rating C0
- 500 kN
- Limiting speed
- 4 300 rpm
- Nominal speed
- 3 000 rpm
- Weight
- 6.2 kg
- Outer ring width C
- 48 mm
- Rolling elements
- Roller tapered
- Load type
- Radial and axial
- ISO designation
- 32316 J
Product summary
32316: tapered roller bearing, brand CT. Bore diameter d 80 mm, outside diameter D 170 mm, mounting height T 61.5 mm. Dynamic load rating C 380 kN, static load rating C0 500 kN, limiting speed 4300 rpm, weight 6.2 kg.
Tapered raceways and rollers whose cone apexes meet on the bearing axis. Carries combined loads: radial and axial in one direction. Can be mounted in pairs, with the clearance or preload set during mounting. Suitable for heavy and shock loads.
Where it is used
Wheel hubs, shafts of bevel-helical and worm gearboxes, machine tool spindles, drums and rollers. Mounted in pairs in an O or X arrangement, with the axial clearance or preload adjusted during mounting.
When not to use
Do not fit it instead of a ball or cylindrical roller bearing: without a second support that closes the axial force, a tapered roller bearing has no preload. The rollers unload and start sliding on the raceway instead of rolling, which leads to scoring and rapid failure. Note that matching d and D proves nothing: a tapered roller bearing is specified by its mounting height T instead of the width B, so the seat width differs and the assembly needs adjustment during mounting.
Technical data is for information only. Drawings may not show all design features.
