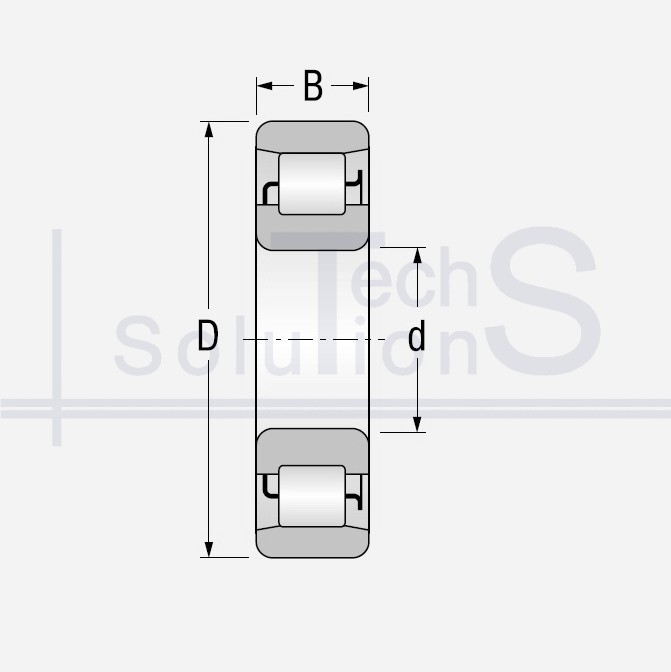

Cylindrical Roller Radial Bearing N226 CT 130 × 230 × 40 mm
Specifications
N226 CT
- Designation
- N226
- Manufacturer
- CT
- Inner diameter d
- 130 mm
- Outer diameter D
- 230 mm
- Width B
- 40 mm
- Weight
- 7.09 kg
- Rolling elements
- Cylindrical roller
- Load type
- Radial
Product summary
N226: cylindrical roller bearing, brand CT. Bore diameter d 130 mm, outside diameter D 230 mm, width B 40 mm. Weight 7.09 kg.
Line contact between the roller and the raceway gives a high radial load capacity and resistance to shock loads. The rings are separable, which makes mounting and dismounting easier.
Where it is used
Floating bearing for gearbox, transmission and large electric motor shafts, roll necks, assemblies that need high radial stiffness. Designs N and NU let the shaft expand freely as it heats up, while NJ and NUP locate it in one or both directions.
When not to use
Do not fit it instead of a tapered roller or angular contact bearing: designs N and NU carry no axial load at all. The shaft will shift along its axis, the roller ends will run against the ring ribs, causing heat and scoring. The reverse swap is wrong too: the bearing is not self-aligning, and misaligned supports move the roller contact to the edge of the raceway.
Technical data is for information only. Drawings may not show all design features.
