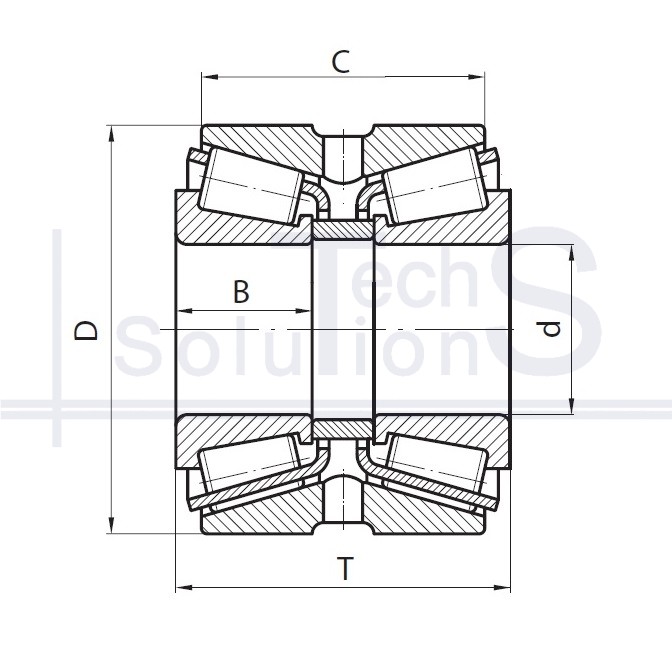

Tapered roller bearing 2097752 M CT 260 × 440 × 225 mm
Specifications
2097752 M CT
- Designation
- 2097752 M
- Manufacturer
- CT
- Inner diameter d
- 260 mm
- Outer diameter D
- 440 mm
- Height T
- 225 mm
- Width B
- 100 mm
- Weight
- 126 kg
- Outer ring width C
- 180 mm
- Rolling elements
- Roller tapered
- Load type
- Radial and axial
- Number of rows
- Double-row
Product summary
2097752 M: tapered roller bearing, brand CT. Bore diameter d 260 mm, outside diameter D 440 mm, mounting height T 225 mm. Weight 126 kg.
Tapered raceways and rollers whose cone apexes meet on the bearing axis. Carries combined loads: radial and axial in one direction. Can be mounted in pairs, with the clearance or preload set during mounting. Suitable for heavy and shock loads.
Where it is used
Wheel hubs, shafts of bevel-helical and worm gearboxes, machine tool spindles, drums and rollers. Mounted in pairs in an O or X arrangement, with the axial clearance or preload adjusted during mounting.
When not to use
Do not fit it instead of a ball or cylindrical roller bearing: without a second support that closes the axial force, a tapered roller bearing has no preload. The rollers unload and start sliding on the raceway instead of rolling, which leads to scoring and rapid failure. Note that matching d and D proves nothing: a tapered roller bearing is specified by its mounting height T instead of the width B, so the seat width differs and the assembly needs adjustment during mounting.
Technical data is for information only. Drawings may not show all design features.
