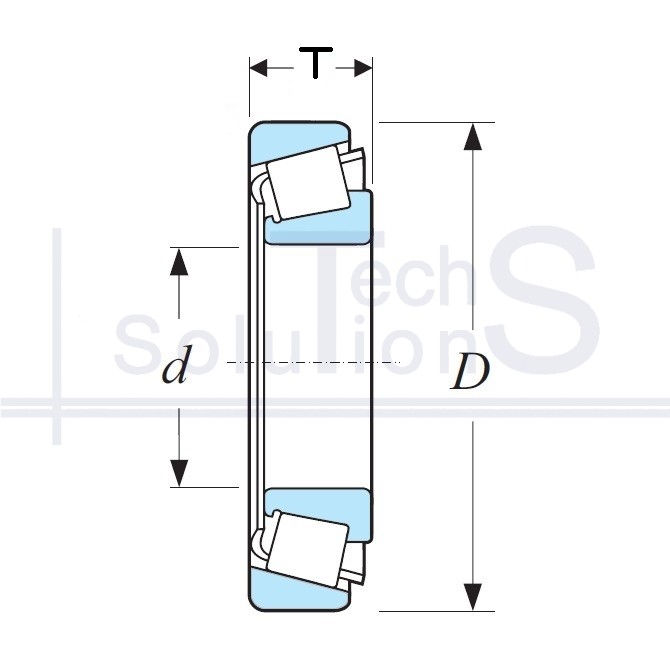

Tapered roller bearing 32010 CT 50 × 80 × 20 mm
Specifications
32010 CT
- Designation
- 32010
- Manufacturer
- CT
- Inner diameter d
- 50 mm
- Outer diameter D
- 80 mm
- Height T
- 20 mm
- Width B
- 20 mm
- Dynamic load rating C
- 60.5 kN
- Static load rating C0
- 88 kN
- Limiting speed
- 8 000 rpm
- Nominal speed
- 6 000 rpm
- Weight
- 0.37 kg
- Rolling elements
- Roller tapered
- Load type
- Radial and axial
- ISO designation
- 32010 J
Product summary
32010: tapered roller bearing, brand CT. Bore diameter d 50 mm, outside diameter D 80 mm, mounting height T 20 mm. Dynamic load rating C 60.5 kN, static load rating C0 88 kN, limiting speed 8000 rpm, weight 0.37 kg.
Tapered raceways and rollers whose cone apexes meet on the bearing axis. Carries combined loads: radial and axial in one direction. Can be mounted in pairs, with the clearance or preload set during mounting. Suitable for heavy and shock loads.
Where it is used
Wheel hubs, shafts of bevel-helical and worm gearboxes, machine tool spindles, drums and rollers. Mounted in pairs in an O or X arrangement, with the axial clearance or preload adjusted during mounting.
When not to use
Do not fit it instead of a ball or cylindrical roller bearing: without a second support that closes the axial force, a tapered roller bearing has no preload. The rollers unload and start sliding on the raceway instead of rolling, which leads to scoring and rapid failure. Note that matching d and D proves nothing: a tapered roller bearing is specified by its mounting height T instead of the width B, so the seat width differs and the assembly needs adjustment during mounting.
Technical data is for information only. Drawings may not show all design features.
