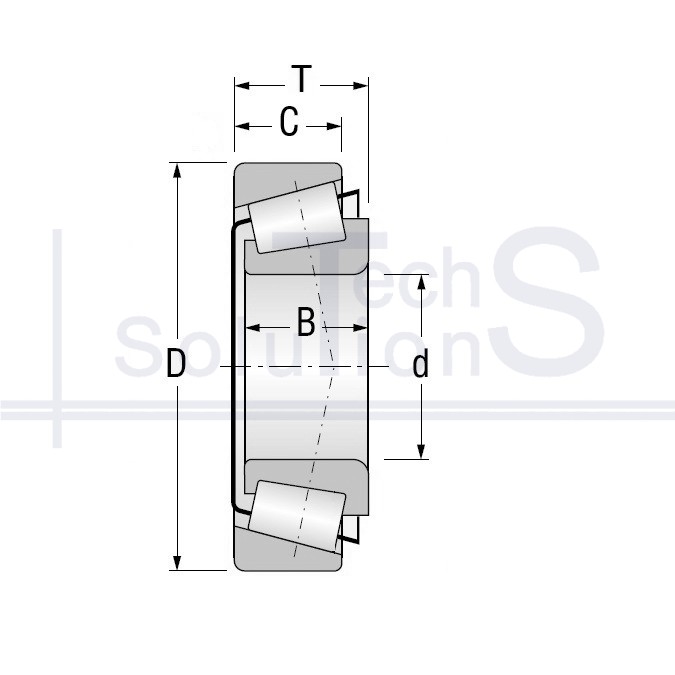

Tapered roller bearing 10079/500 M CT 500 × 670 × 85 mm
Specifications
10079/500 M CT
- Designation
- 10079/500 M
- Manufacturer
- CT
- Inner diameter d
- 500 mm
- Outer diameter D
- 670 mm
- Height T
- 85 mm
- Weight
- 77 kg
- Rolling elements
- Roller tapered
- Load type
- Radial and axial
Product summary
10079/500 M: tapered roller bearing, brand CT. Bore diameter d 500 mm, outside diameter D 670 mm, mounting height T 85 mm. Weight 77 kg.
Tapered raceways and rollers whose cone apexes meet on the bearing axis. Carries combined loads: radial and axial in one direction. Can be mounted in pairs, with the clearance or preload set during mounting. Suitable for heavy and shock loads.
Where it is used
Wheel hubs, shafts of bevel-helical and worm gearboxes, machine tool spindles, drums and rollers. Mounted in pairs in an O or X arrangement, with the axial clearance or preload adjusted during mounting.
When not to use
Do not fit it instead of a ball or cylindrical roller bearing: without a second support that closes the axial force, a tapered roller bearing has no preload. The rollers unload and start sliding on the raceway instead of rolling, which leads to scoring and rapid failure. Note that matching d and D proves nothing: a tapered roller bearing is specified by its mounting height T instead of the width B, so the seat width differs and the assembly needs adjustment during mounting.
Technical data is for information only. Drawings may not show all design features.
