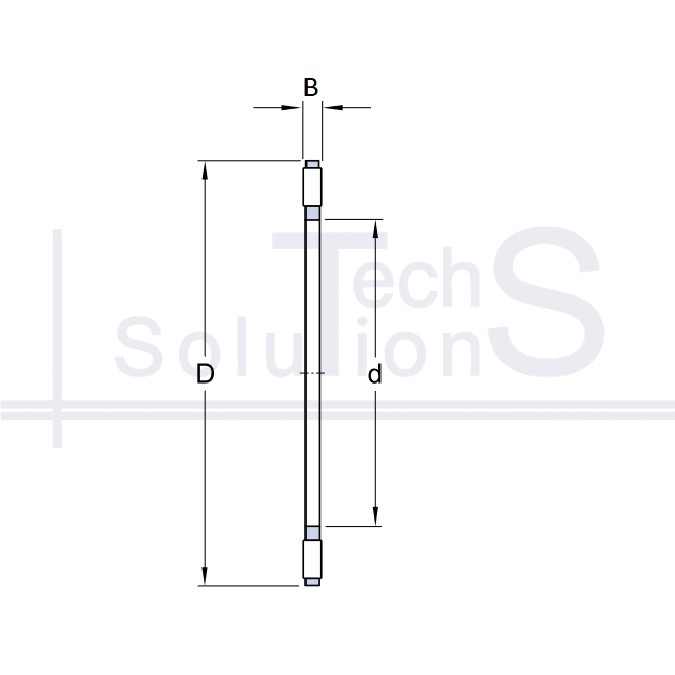

Needle thrust bearing cage AXK 4565 SKF 45 × 65 × 4 mm
Specifications
AXK 4565 SKF
- Designation
- AXK 4565
- Manufacturer
- SKF
- Inner diameter d
- 45 mm
- Outer diameter D
- 65 mm
- Width B
- 4 mm
- Dynamic load rating C
- 27 kN
- Static load rating C0
- 127 kN
- Limiting speed
- 5 300 rpm
- Nominal speed
- 2 600 rpm
- Weight
- 0.018 kg
- Chamfer radius r
- 0.6 mm
- Rolling elements
- Needle bearings
Product summary
AXK 4565: needle roller thrust bearing, brand SKF. Bore diameter d 45 mm, outside diameter D 65 mm, width B 4 mm. Dynamic load rating C 27 kN, static load rating C0 127 kN, limiting speed 5300 rpm, weight 0.018 kg.
Needle rollers in a cage between flat washers: axial load capacity with a section height of just a few millimetres.
Where it is used
Gearboxes and transfer cases, steering columns, axial piston pumps and hydraulic motors, compressors, planet gear faces in planetary gear sets. Used where an axial support has to fit into a few millimetres of height.
When not to use
It takes no radial load at all. The needle and cage assembly runs only on ground washers or on faces with a hardness of about 58–64 HRC: on an unhardened face the raceway gets dented. In a high-speed assembly it does not replace a thrust ball bearing.
Technical data is for information only. Drawings may not show all design features.
