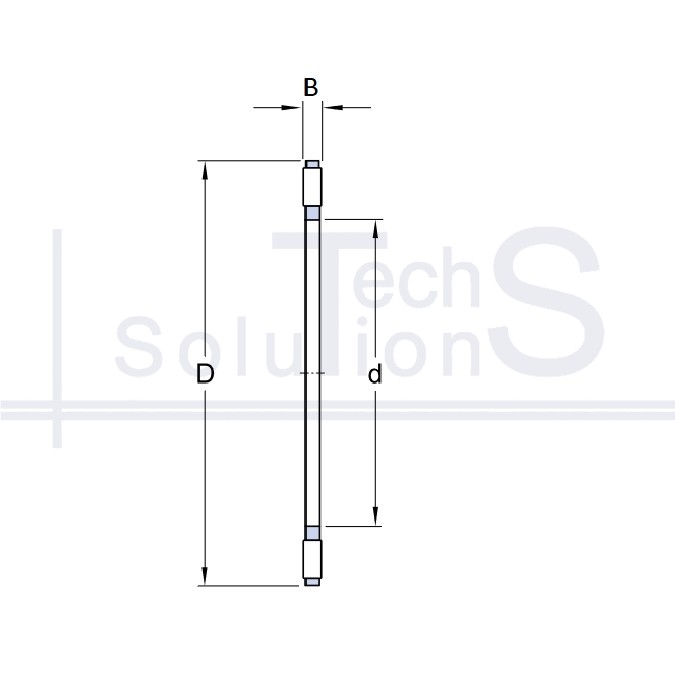

Needle thrust bearing cage AXK 100135 SKF 100 × 135 × 7 mm
Specifications
AXK 100135 SKF
- Designation
- AXK 100135
- Manufacturer
- SKF
- Inner diameter d
- 100 mm
- Outer diameter D
- 135 mm
- Width B
- 7 mm
- Dynamic load rating C
- 76.5 kN
- Static load rating C0
- 560 kN
- Limiting speed
- 2 800 rpm
- Nominal speed
- 1 400 rpm
- Weight
- 0.104 kg
- Chamfer radius r
- 1 mm
- Rolling elements
- Needle
Product summary
AXK 100135: needle roller thrust bearing, brand SKF. Bore diameter d 100 mm, outside diameter D 135 mm, width B 7 mm. Dynamic load rating C 76.5 kN, static load rating C0 560 kN, limiting speed 2800 rpm, weight 0.104 kg.
Needle rollers in a cage between flat washers: axial load capacity with a section height of just a few millimetres.
Where it is used
Gearboxes and transfer cases, steering columns, axial piston pumps and hydraulic motors, compressors, planet gear faces in planetary gear sets. Used where an axial support has to fit into a few millimetres of height.
When not to use
It takes no radial load at all. The needle and cage assembly runs only on ground washers or on faces with a hardness of about 58–64 HRC: on an unhardened face the raceway gets dented. In a high-speed assembly it does not replace a thrust ball bearing.
Technical data is for information only. Drawings may not show all design features.
