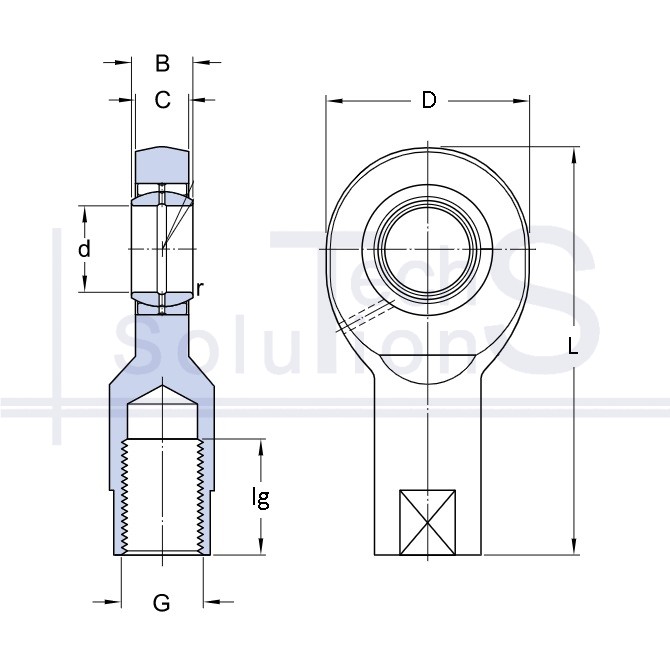

Rod end SI 30 ES SKF 30 × 75 × 22 mm
d 30 mm bore
D 75 mm outside diameter
B 22 mm width
Specifications
SI 30 ES SKF
- Designation
- SI 30 ES
- Manufacturer
- SKF
- Inner diameter d
- 30 mm
- Outer diameter D
- 75 mm
- Width B
- 22 mm
- Dynamic load rating C
- 62 kN
- Static load rating C0
- 116 kN
- Weight
- 1 kg
- Chamfer radius r
- 0.6 mm
- Height L
- 149 mm
- Thread length lg
- 45 mm
- G thread
- M30x2
- Rod end thread
- With internal thread
- Outer ring width C
- 20 mm
SELLER
Tech Solutions Sp. z o.o.
In the KRS register since 2012 verify ↗
KRS 0000429411 · entered 09.08.2012
Łódź, same address since 2014
ul. Wersalska 47/75, lok. 181, 91-212 Łódź
EU VAT number active verify ↗
PL7292701947
Financial statements with auditor's opinion verify ↗
For 2016–2025, no entries on debts or liquidation (as of 09.2026)
Product summary
SI 30 ES: rod end, brand SKF. Bore diameter d 30 mm, outside diameter D 75 mm, width B 22 mm. Dynamic load rating C 62 kN, static load rating C0 116 kN, weight 1 kg.
Technical data is for information only. Drawings may not show all design features.
About the technical data
* - Technical specifications and other information are provided for reference only. We provide this data and believe the information to be reliable, however, no guarantee of accuracy or completeness of such information can be provided.
- Drawings and images may not reflect all design features of the product.
