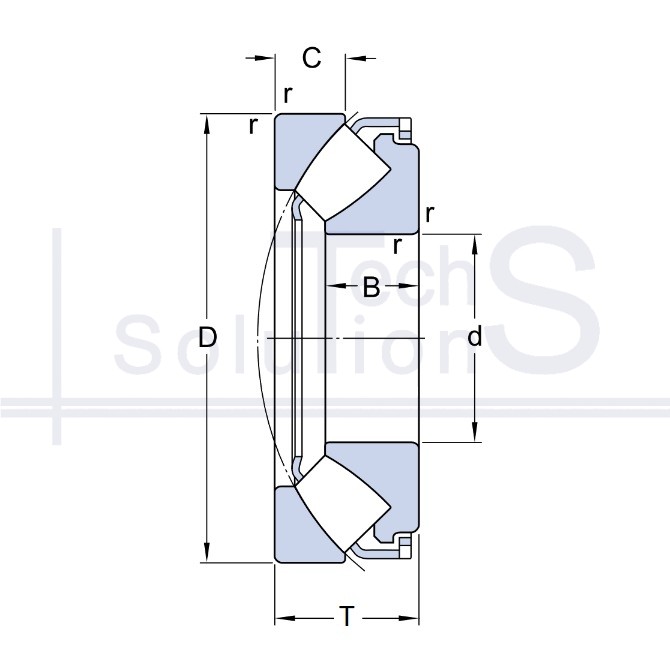

Spherical roller thrust-radial bearing 29330 E SKF 150 × 250 × 60 mm
Specifications
29330 E SKF
- Designation
- 29330 E
- Manufacturer
- SKF
- Inner diameter d
- 150 mm
- Outer diameter D
- 250 mm
- Height T
- 60 mm
- Width B
- 38 mm
- Dynamic load rating C
- 1000 kN
- Static load rating C0
- 2 850 kN
- Limiting speed
- 2 400 rpm
- Nominal speed
- 1 500 rpm
- Weight
- 11 kg
- Chamfer radius r
- 2.1 mm
- Rolling elements
- Roller spherical
- Load type
- Axial and radial
Product summary
29330 E: spherical roller bearing, brand SKF. Bore diameter d 150 mm, outside diameter D 250 mm, mounting height T 60 mm. Dynamic load rating C 1000 kN, static load rating C0 2850 kN, limiting speed 2400 rpm, weight 11 kg.
Two rows of barrel-shaped rollers on the spherical raceway of the outer ring: high load capacity combined with compensation of misalignment. For heavy and shock loads at low and medium speeds.
Where it is used
Vibrating screens and sieves, belt conveyor pulleys, crushers, mills, high-power fans, long line shafts that deflect. The spherical outer raceway compensates for misalignment of supports in a welded frame that cannot be corrected by machining.
When not to use
Do not fit it instead of a deep groove ball bearing in a high-speed assembly: in the same size, a spherical roller bearing can have a limiting speed several times lower, so the assembly will overheat and push grease out through the seals. The reverse swap costs even more: if the supports are misaligned, any rigid bearing will run on the edge of the raceway and start spalling within a few hundred hours.
Technical data is for information only. Drawings may not show all design features.
