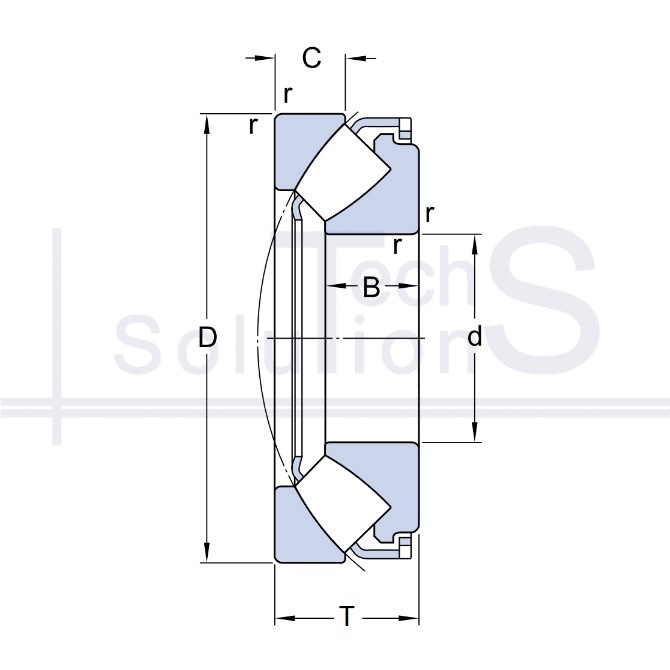

Spherical thrust radial roller bearing 29318 E SKF 90 × 155 × 39 mm
Specifications
29318 E SKF
- Designation
- 29318 E
- Manufacturer
- SKF
- Inner diameter d
- 90 mm
- Outer diameter D
- 155 mm
- Height T
- 39 mm
- Width B
- 24.5 mm
- Dynamic load rating C
- 400 kN
- Static load rating C0
- 1 080 kN
- Limiting speed
- 4 000 rpm
- Nominal speed
- 2 400 rpm
- Weight
- 2.85 kg
- Chamfer radius r
- 1.5 mm
- Rolling elements
- Spherical roller bearings
- Load type
- Axial and radial
Product summary
29318 E: spherical roller thrust bearing, brand SKF. Bore diameter d 90 mm, outside diameter D 155 mm, mounting height T 39 mm. Dynamic load rating C 400 kN, static load rating C0 1080 kN, limiting speed 4000 rpm, weight 2.85 kg.
Spherical rollers set at an angle to the axis: carries axial load together with radial load and compensates for misalignment. Used in heavily loaded assemblies, including vertical shafts.
Where it is used
Vertical shafts under constant axial pressure: cone crushers, vertical mills, pump and propeller shaft thrust bearings, extruders, crane hooks, hydro turbines. Works where the shaft deflects under load while the support must remain aligned.
When not to use
It does not work as a radial support: radial load is permissible only together with axial load and up to about 55% of it. It does not tolerate unloading: without a minimum axial force the rollers slide. In a high-speed assembly it does not replace a thrust ball bearing, as its limiting speed is an order of magnitude lower.
Technical data is for information only. Drawings may not show all design features.
About the technical data
* - Technical specifications and other information are provided for reference only. We provide this data and believe the information to be reliable, however, no guarantee of accuracy or completeness of such information can be provided.
- Drawings and images may not reflect all design features of the product.
