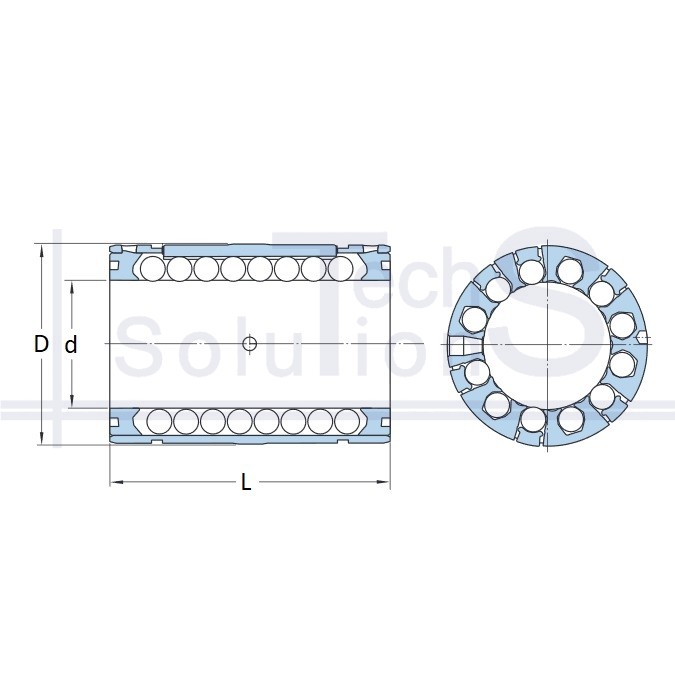

Linear Motion Ball Bearing LBCD 20 D-2LS SKF
d 20 mm bore
D 32 mm outside diameter
Specifications
LBCD 20 D-2LS SKF
- Designation
- LBCD 20 D-2LS
- Manufacturer
- SKF
- Inner diameter d
- 20 mm
- Outer diameter D
- 32 mm
- Dynamic load rating C
- 1.73 kN
- Static load rating C0
- 1.12 kN
- Weight
- 0.042 kg
- Rolling elements
- Ball bearings
- Length L
- 45 mm
- Bearing series
- LBCD
SELLER
Tech Solutions Sp. z o.o.
In the KRS register since 2012 verify ↗
KRS 0000429411 · entered 09.08.2012
Łódź, same address since 2014
ul. Wersalska 47/75, lok. 181, 91-212 Łódź
EU VAT number active verify ↗
PL7292701947
Financial statements with auditor's opinion verify ↗
For 2016–2025, no entries on debts or liquidation (as of 09.2026)
Product summary
LBCD 20 D-2LS: linear Motion Ball Bearing, brand SKF. Bore diameter d 20 mm, outside diameter D 32 mm. Dynamic load rating C 1.73 kN, static load rating C0 1.12 kN, weight 0.042 kg.
With double-lip sealing
Technical data is for information only. Drawings may not show all design features.
About the technical data
* - Technical specifications and other information are provided for reference only. We provide this data and believe the information to be reliable, however, no guarantee of accuracy or completeness of such information can be provided.
- Drawings and images may not reflect all design features of the product.
