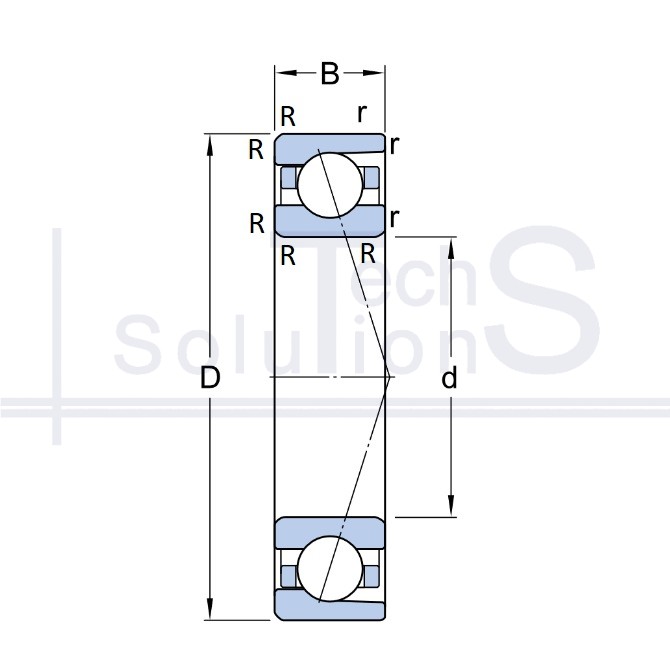

Angular contact ball bearing 71914 CDGA/P4A SKF 70 × 100 × 16 mm
Specifications
71914 CDGA/P4A SKF
- Designation
- 71914 CDGA/P4A
- Manufacturer
- SKF
- Inner diameter d
- 70 mm
- Outer diameter D
- 100 mm
- Width B
- 16 mm
- Dynamic load rating C
- 34.5 kN
- Static load rating C0
- 34 kN
- Limiting speed
- 20 000 rpm
- Nominal speed
- 13 000 rpm
- Weight
- 0.33 kg
- Chamfer radius r
- 1 mm
- Rolling elements
- Ball
- Load type
- Radial and axial
- Manufacturing accuracy
- Precision
Product summary
71914 CDGA/P4A: angular contact ball bearing, brand SKF. Bore diameter d 70 mm, outside diameter D 100 mm, width B 16 mm. Dynamic load rating C 34.5 kN, static load rating C0 34 kN, limiting speed 20 000 rpm, weight 0.33 kg.
The contact angle lets it carry combined loads: radial together with axial. A single-row bearing takes axial load in one direction only, so it is mounted in pairs or sets.
Where it is used
Machine tool spindles in DB, DF and DT sets, centrifugal pump and compressor shafts, worm gearboxes, motor spindles. A 15° contact angle is chosen for speed, 40° for axial load.
When not to use
Do not fit a single one instead of a deep groove ball bearing: it takes axial load in one direction only, an opposing force pushes the rings apart, the rolling elements leave the raceway and the assembly comes apart in operation. Do not fit it instead of a tapered roller bearing under axial shock loads: the point contact of the ball gives a lower static load rating C0, the raceways get dented and the assembly then runs noisy and knocks regardless of lubricant quality.
Technical data is for information only. Drawings may not show all design features.
