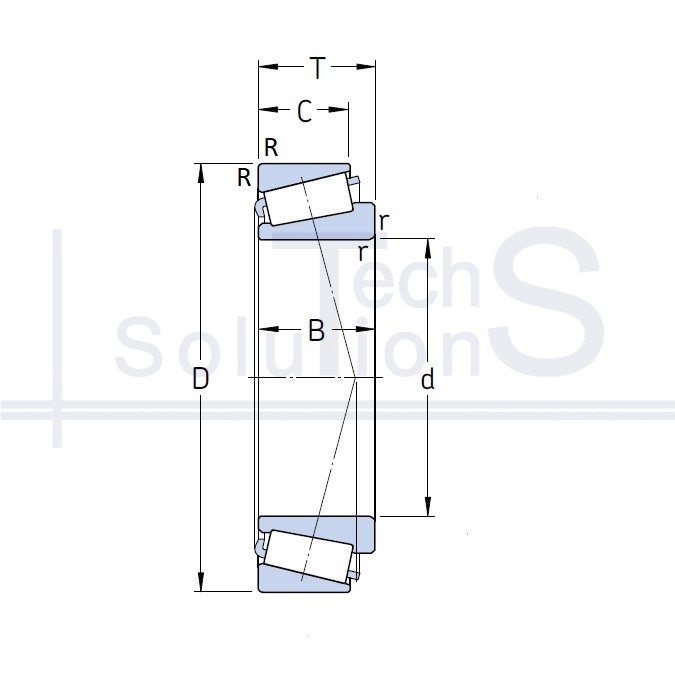

Tapered roller bearing 32240 J2 SKF 200 × 360 × 104 mm
Specifications
32240 J2 SKF
- Designation
- 32240 J2
- Manufacturer
- SKF
- Inner diameter d
- 200 mm
- Outer diameter D
- 360 mm
- Height T
- 104 mm
- Width B
- 98 mm
- Dynamic load rating C
- 1300 kN
- Static load rating C0
- 2 000 kN
- Limiting speed
- 1 700 rpm
- Nominal speed
- 1 300 rpm
- Weight
- 42.4 kg
- Chamfer radius r
- 4 mm
- Rolling elements
- Tapered roller bearings
- Load type
- Radial and axial
- Outer ring width C
- 82 mm
Product summary
32240 J2: tapered roller bearing, brand SKF. Bore diameter d 200 mm, outside diameter D 360 mm, mounting height T 104 mm. Dynamic load rating C 1300 kN, static load rating C0 2000 kN, limiting speed 1700 rpm, weight 42.4 kg.
Tapered raceways and rollers whose cone apexes meet on the bearing axis. Carries combined loads: radial and axial in one direction. Can be mounted in pairs, with the clearance or preload set during mounting. Suitable for heavy and shock loads.
Where it is used
Wheel hubs, shafts of bevel-helical and worm gearboxes, machine tool spindles, drums and rollers. Mounted in pairs in an O or X arrangement, with the axial clearance or preload adjusted during mounting.
When not to use
Do not fit it instead of a ball or cylindrical roller bearing: without a second support that closes the axial force, a tapered roller bearing has no preload. The rollers unload and start sliding on the raceway instead of rolling, which leads to scoring and rapid failure. Note that matching d and D proves nothing: a tapered roller bearing is specified by its mounting height T instead of the width B, so the seat width differs and the assembly needs adjustment during mounting.
Technical data is for information only. Drawings may not show all design features.
