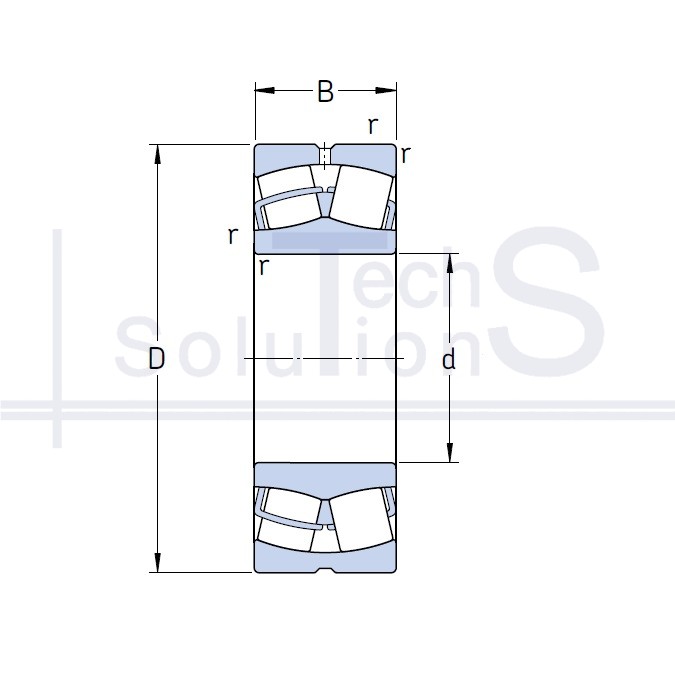

Spherical roller radial bearing 22332 CC/W33 SKF 160 × 340 × 114 mm
Specifications
22332 CC/W33 SKF
- Designation
- 22332 CC/W33
- Manufacturer
- SKF
- Inner diameter d
- 160 mm
- Outer diameter D
- 340 mm
- Width B
- 114 mm
- Dynamic load rating C
- 1600 kN
- Static load rating C0
- 1 960 kN
- Limiting speed
- 1 900 rpm
- Nominal speed
- 1 500 rpm
- Weight
- 52 kg
- Chamfer radius r
- 4 mm
- Rolling elements
- Roller spherical
- Load type
- Radial
- Number of rows
- Double-row
- Mounting hole
- Cylindrical
Product summary
22332 CC/W33: spherical roller bearing, brand SKF. Bore diameter d 160 mm, outside diameter D 340 mm, width B 114 mm. Dynamic load rating C 1600 kN, static load rating C0 1960 kN, limiting speed 1900 rpm, weight 52 kg.
Two rows of barrel-shaped rollers on the spherical raceway of the outer ring: high load capacity combined with compensation of misalignment. For heavy and shock loads at low and medium speeds.
Where it is used
Vibrating screens and sieves, belt conveyor pulleys, crushers, mills, high-power fans, long line shafts that deflect. The spherical outer raceway compensates for misalignment of supports in a welded frame that cannot be corrected by machining.
When not to use
Do not fit it instead of a deep groove ball bearing in a high-speed assembly: in the same size, a spherical roller bearing can have a limiting speed several times lower, so the assembly will overheat and push grease out through the seals. The reverse swap costs even more: if the supports are misaligned, any rigid bearing will run on the edge of the raceway and start spalling within a few hundred hours.
Technical data is for information only. Drawings may not show all design features.
