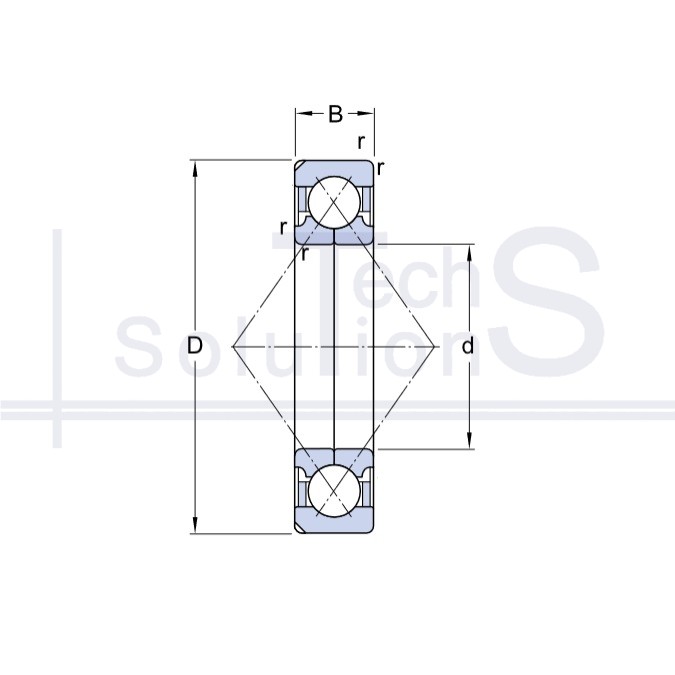

Angular contact ball bearing QJ 232 N2MA SKF 160 × 290 × 48 mm
Specifications
QJ 232 N2MA SKF
- Designation
- QJ 232 N2MA
- Manufacturer
- SKF
- Inner diameter d
- 160 mm
- Outer diameter D
- 290 mm
- Width B
- 48 mm
- Dynamic load rating C
- 450 kN
- Static load rating C0
- 670 kN
- Limiting speed
- 3 800 rpm
- Weight
- 15.5 kg
- Chamfer radius r
- 3 mm
- Rolling elements
- Ball bearings
- Load type
- Radial and axial
Product summary
QJ 232 N2MA: angular contact ball bearing, brand SKF. Bore diameter d 160 mm, outside diameter D 290 mm, width B 48 mm. Dynamic load rating C 450 kN, static load rating C0 670 kN, limiting speed 3800 rpm, weight 15.5 kg.
The contact angle lets it carry combined loads: radial together with axial. A single-row bearing takes axial load in one direction only, so it is mounted in pairs or sets.
Where it is used
Machine tool spindles in DB, DF and DT sets, centrifugal pump and compressor shafts, worm gearboxes, motor spindles. A 15° contact angle is chosen for speed, 40° for axial load.
When not to use
Do not fit a single one instead of a deep groove ball bearing: it takes axial load in one direction only, an opposing force pushes the rings apart, the rolling elements leave the raceway and the assembly comes apart in operation. Do not fit it instead of a tapered roller bearing under axial shock loads: the point contact of the ball gives a lower static load rating C0, the raceways get dented and the assembly then runs noisy and knocks regardless of lubricant quality.
Technical data is for information only. Drawings may not show all design features.
