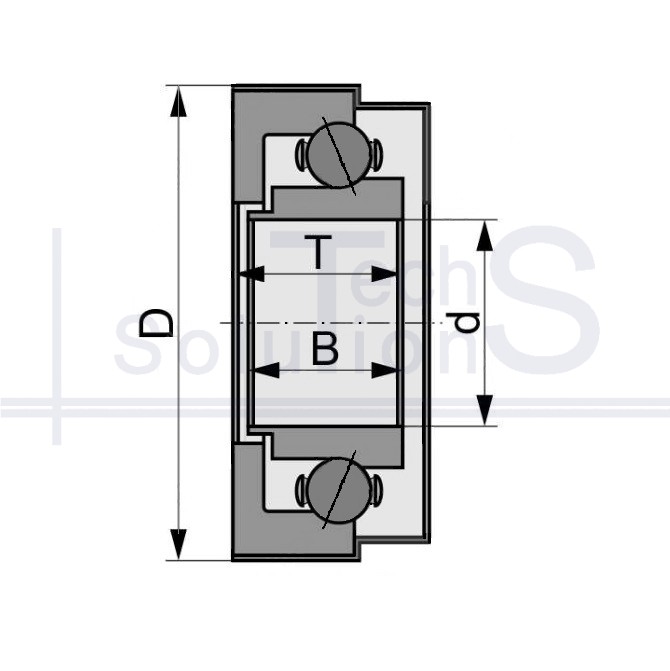

Angular contact ball bearing 986714 NTE 70 × 106 × 21.5 mm
Specifications
986714 NTE
- Designation
- 986714
- Manufacturer
- NTE
- Inner diameter d
- 70 mm
- Outer diameter D
- 106 mm
- Height T
- 21.5 mm
- Width B
- 21 mm
- Weight
- 0.53 kg
- Rolling elements
- Ball
- Load type
- Radial and axial
Product summary
986714: angular contact ball bearing, brand NTE. Bore diameter d 70 mm, outside diameter D 106 mm, mounting height T 21.5 mm. Weight 0.53 kg.
The contact angle lets it carry combined loads: radial together with axial. A single-row bearing takes axial load in one direction only, so it is mounted in pairs or sets.
Where it is used
Machine tool spindles in DB, DF and DT sets, centrifugal pump and compressor shafts, worm gearboxes, motor spindles. A 15° contact angle is chosen for speed, 40° for axial load.
When not to use
Do not fit a single one instead of a deep groove ball bearing: it takes axial load in one direction only, an opposing force pushes the rings apart, the rolling elements leave the raceway and the assembly comes apart in operation. Do not fit it instead of a tapered roller bearing under axial shock loads: the point contact of the ball gives a lower static load rating C0, the raceways get dented and the assembly then runs noisy and knocks regardless of lubricant quality.
Technical data is for information only. Drawings may not show all design features.
