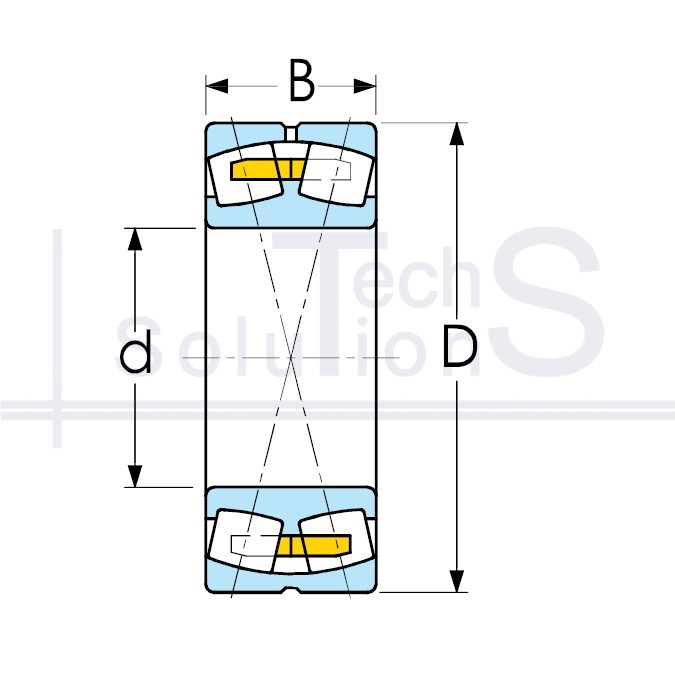

Spherical roller bearing 23056 MBW33 NTE 280 × 420 × 106 mm
Specifications
23056 MBW33 NTE
- Designation
- 23056 MBW33
- Manufacturer
- NTE
- Inner diameter d
- 280 mm
- Outer diameter D
- 420 mm
- Width B
- 106 mm
- Weight
- 62 kg
- Rolling elements
- Roller spherical
- Load type
- Radial
- Number of rows
- Double-row
- Mounting hole
- Cylindrical
Product summary
23056 MBW33: spherical roller bearing, brand NTE. Bore diameter d 280 mm, outside diameter D 420 mm, width B 106 mm. Weight 62 kg.
Two rows of barrel-shaped rollers on the spherical raceway of the outer ring: high load capacity combined with compensation of misalignment. For heavy and shock loads at low and medium speeds.
Where it is used
Vibrating screens and sieves, belt conveyor pulleys, crushers, mills, high-power fans, long line shafts that deflect. The spherical outer raceway compensates for misalignment of supports in a welded frame that cannot be corrected by machining.
When not to use
Do not fit it instead of a deep groove ball bearing in a high-speed assembly: in the same size, a spherical roller bearing can have a limiting speed several times lower, so the assembly will overheat and push grease out through the seals. The reverse swap costs even more: if the supports are misaligned, any rigid bearing will run on the edge of the raceway and start spalling within a few hundred hours.
Technical data is for information only. Drawings may not show all design features.
