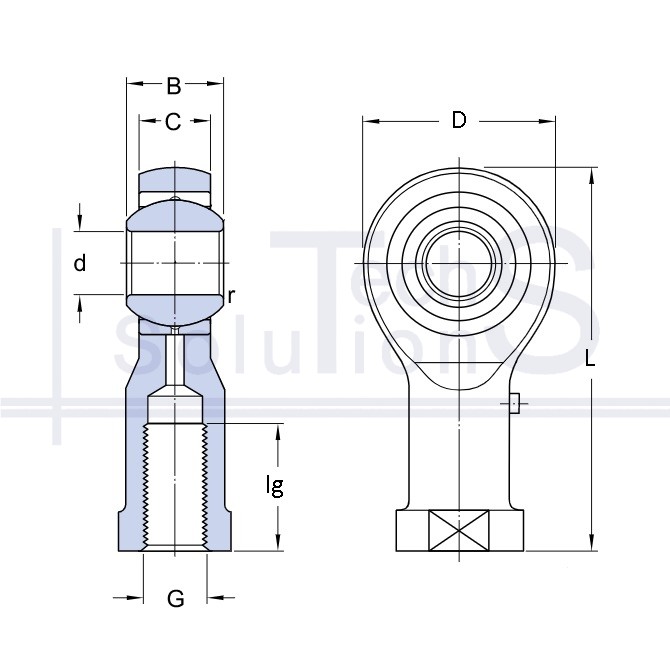

Rod end SIKAC 10 M/VZ019 SKF 10 × 29 × 14 mm
d 10 mm bore
D 29 mm outside diameter
B 14 mm width
Specifications
SIKAC 10 M/VZ019 SKF
- Designation
- SIKAC 10 M/VZ019
- Manufacturer
- SKF
- Inner diameter d
- 10 mm
- Outer diameter D
- 29 mm
- Width B
- 14 mm
- Dynamic load rating C
- 10 kN
- Static load rating C0
- 12.2 kN
- Weight
- 0.072 kg
- Chamfer radius r
- 0.3 mm
- Height L
- 58 mm
- Thread length lg
- 15 mm
- G thread
- M10x1.25
- Rod end thread
- With internal right-hand thread
- Outer ring width C
- 11.5 mm
SELLER
Tech Solutions Sp. z o.o.
In the KRS register since 2012 verify ↗
KRS 0000429411 · entered 09.08.2012
Łódź, same address since 2014
ul. Wersalska 47/75, lok. 181, 91-212 Łódź
EU VAT number active verify ↗
PL7292701947
Financial statements with auditor's opinion verify ↗
For 2016–2025, no entries on debts or liquidation (as of 09.2026)
Product summary
SIKAC 10 M/VZ019: rod end, brand SKF. Bore diameter d 10 mm, outside diameter D 29 mm, width B 14 mm. Dynamic load rating C 10 kN, static load rating C0 12.2 kN, weight 0.072 kg.
Technical data is for information only. Drawings may not show all design features.
