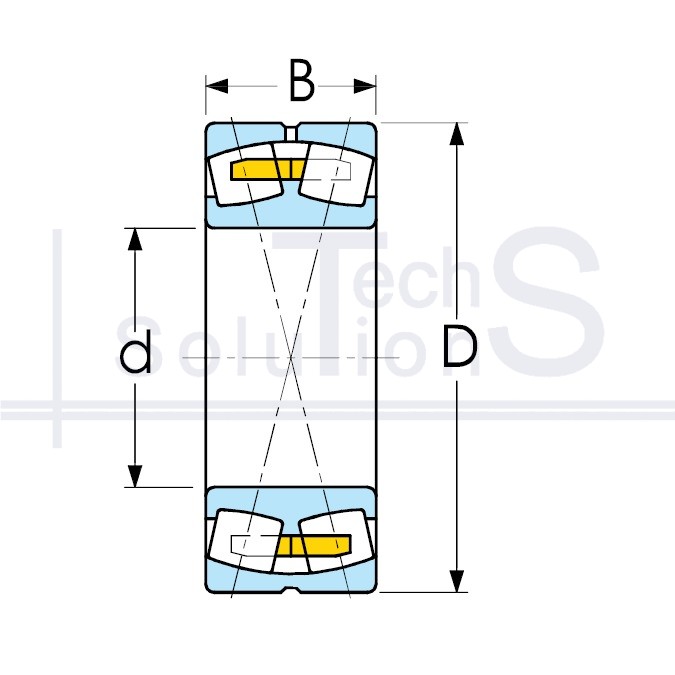

Spherical roller bearing 22338 MBW33 NTE 190 × 400 × 132 mm
Specifications
22338 MBW33 NTE
- Designation
- 22338 MBW33
- Manufacturer
- NTE
- Inner diameter d
- 190 mm
- Outer diameter D
- 400 mm
- Width B
- 132 mm
- Weight
- 81 kg
- Rolling elements
- Ball bearings
- Load type
- Radial
- Number of rows
- Double-row
- Mounting hole
- Cylindrical
Product summary
22338 MBW33: spherical roller bearing, brand NTE. Bore diameter d 190 mm, outside diameter D 400 mm, width B 132 mm. Weight 81 kg.
Two rows of barrel-shaped rollers on the spherical raceway of the outer ring: high load capacity combined with compensation of misalignment. For heavy and shock loads at low and medium speeds.
Where it is used
Vibrating screens and sieves, belt conveyor pulleys, crushers, mills, high-power fans, long line shafts that deflect. The spherical outer raceway compensates for misalignment of supports in a welded frame that cannot be corrected by machining.
When not to use
Do not fit it instead of a deep groove ball bearing in a high-speed assembly: in the same size, a spherical roller bearing can have a limiting speed several times lower, so the assembly will overheat and push grease out through the seals. The reverse swap costs even more: if the supports are misaligned, any rigid bearing will run on the edge of the raceway and start spalling within a few hundred hours.
