Cylindrical roller radial bearing NU 2334 ECML SKF 170 × 360 × 120 mm
Specifications
NU 2334 ECML SKF
- Designation
- NU 2334 ECML
- Manufacturer
- SKF
- Inner diameter d
- 170 mm
- Outer diameter D
- 360 mm
- Width B
- 120 mm
- Dynamic load rating C
- 1450 kN
- Static load rating C0
- 2 040 kN
- Limiting speed
- 3 000 rpm
- Nominal speed
- 1 700 rpm
- Weight
- 60.5 kg
- Chamfer radius r
- 4 mm
- Rolling elements
- Cylindrical roller bearings
- Load type
- Radial
- Internal generatrix F
- 216 mm
- Permissible axial displacement s
- 10 mm
Product summary
NU 2334 ECML: cylindrical roller bearing, brand SKF. Bore diameter d 170 mm, outside diameter D 360 mm, width B 120 mm. Dynamic load rating C 1450 kN, static load rating C0 2040 kN, limiting speed 3000 rpm, weight 60.5 kg.
Line contact between the roller and the raceway gives a high radial load capacity and resistance to shock loads. The rings are separable, which makes mounting and dismounting easier.
Where it is used
Floating bearing for gearbox, transmission and large electric motor shafts, roll necks, assemblies that need high radial stiffness. Designs N and NU let the shaft expand freely as it heats up, while NJ and NUP locate it in one or both directions.
When not to use
Do not fit it instead of a tapered roller or angular contact bearing: designs N and NU carry no axial load at all. The shaft will shift along its axis, the roller ends will run against the ring ribs, causing heat and scoring. The reverse swap is wrong too: the bearing is not self-aligning, and misaligned supports move the roller contact to the edge of the raceway.

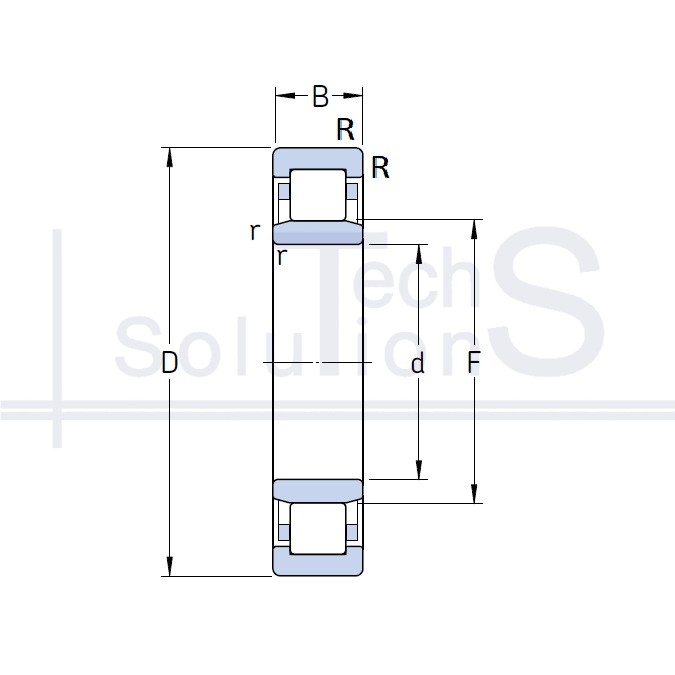

Technical data is for information only. Drawings may not show all design features.
