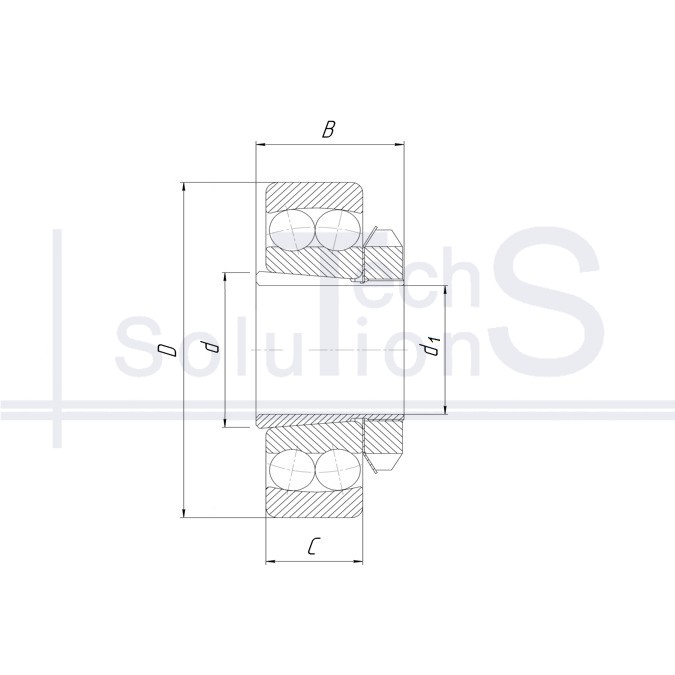

Self-aligning ball bearing 1212K+H212 NTE 60 × 110 × 38 mm
Specifications
1212K+H212 NTE
- Designation
- 1212K+H212
- Manufacturer
- NTE
- Inner diameter d
- 60 mm
- Outer diameter D
- 110 mm
- Width B
- 38 mm
- Weight
- 1.25 kg
- Outer ring width C
- 22 mm
- Rolling elements
- Ball bearings
- Load type
- Radial
- Number of rows
- Double-row
- Mounting hole
- Conical
- Locking bush
- H212
- Bushing bore diameter d1
- 55 mm
Product summary
1212K+H212: self-aligning ball bearing, brand NTE. Bore diameter d 60 mm, outside diameter D 110 mm, width B 38 mm. Weight 1.25 kg.
The spherical raceway of the outer ring lets the inner ring with the balls swivel relative to it, so the bearing compensates for misalignment between shaft and housing. Friction torque is lower than in a spherical roller bearing, and so is the load capacity.
Where it is used
Line and drive shafts on three or more supports, fans, textile and agricultural machinery, conveyors where housings are bolted to a welded frame without common line boring. Friction torque is lower than in a spherical roller bearing, so the support runs cooler in continuous operation.
When not to use
Do not fit it instead of a spherical roller bearing in a loaded assembly: the point contact of the balls gives a load rating C several times lower, and life falls with the cube of the C/P ratio. Half the load rating means one eighth of the life. Do not fit it instead of a rigid ball bearing where angular stiffness is needed: the outer ring does not hold the shaft angle, so the assembly behaves like a hinge and nearby gear meshes and seals suffer. Do not use it where the bearing is subject to axial load.
Technical data is for information only. Drawings may not show all design features.
