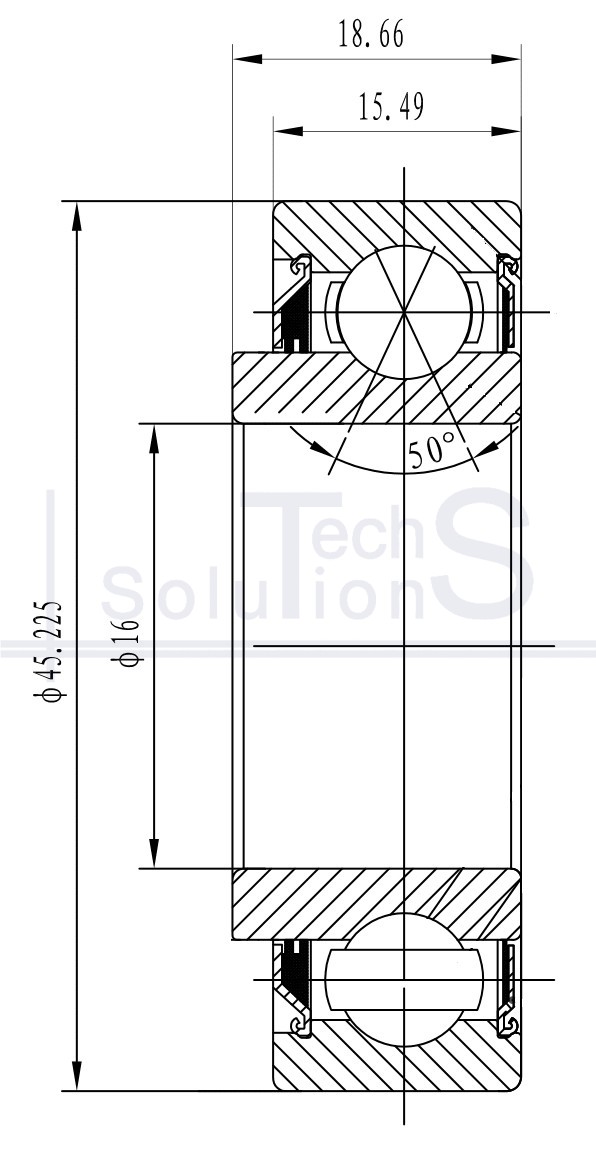

Angular contact ball bearing 204 RY2 NTE 16.027 × 45.225 × 18.66 mm
Specifications
204 RY2 NTE
- Designation
- 204 RY2
- Manufacturer
- NTE
- Inner diameter d
- 16.027 mm
- Outer diameter D
- 45.225 mm
- Width B
- 18.66 mm
- Dynamic load rating C
- 12.48 kN
- Static load rating C0
- 6.65 kN
- Weight
- 0.126 kg
- Outer ring width C
- 15.49 mm
- Rolling elements
- Ball bearings
- Load type
- Radial and axial
- Application of bearing
- A/G bearing
Product summary
204 RY2: angular contact ball bearing, brand NTE. Bore diameter d 16.027 mm, outside diameter D 45.225 mm, width B 18.66 mm. Dynamic load rating C 12.48 kN, static load rating C0 6.65 kN, weight 0.126 kg.
The contact angle lets it carry combined loads: radial together with axial. A single-row bearing takes axial load in one direction only, so it is mounted in pairs or sets.
Four-point contact, double sealing
Where it is used
Machine tool spindles in DB, DF and DT sets, centrifugal pump and compressor shafts, worm gearboxes, motor spindles. A 15° contact angle is chosen for speed, 40° for axial load.
When not to use
Do not fit a single one instead of a deep groove ball bearing: it takes axial load in one direction only, an opposing force pushes the rings apart, the rolling elements leave the raceway and the assembly comes apart in operation. Do not fit it instead of a tapered roller bearing under axial shock loads: the point contact of the ball gives a lower static load rating C0, the raceways get dented and the assembly then runs noisy and knocks regardless of lubricant quality.
Technical data is for information only. Drawings may not show all design features.
