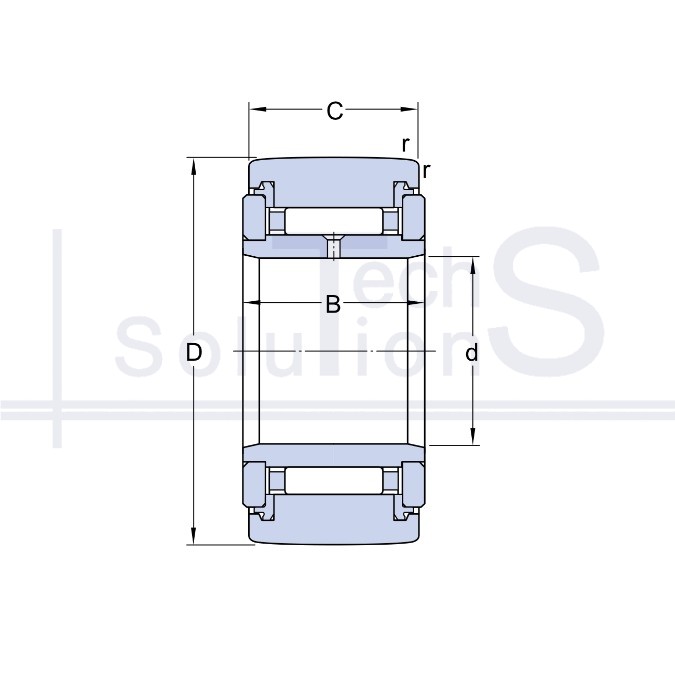

Support roller NATR 10 PPA SKF 10 × 30 × 15 mm
Specifications
NATR 10 PPA SKF
- Designation
- NATR 10 PPA
- Manufacturer
- SKF
- Inner diameter d
- 10 mm
- Outer diameter D
- 30 mm
- Width B
- 15 mm
- Dynamic load rating C
- 6.44 kN
- Static load rating C0
- 8 kN
- Limiting speed
- 4 800 rpm
- Weight
- 0.059 kg
- Chamfer radius r
- 0.6 mm
- Rolling elements
- Needle
- Presence of a trunnion
- Without journal
- Outer ring width C
- 14 mm
Product summary
NATR 10 PPA: track roller, brand SKF. Bore diameter d 10 mm, outside diameter D 30 mm, width B 15 mm. Dynamic load rating C 6.44 kN, static load rating C0 8 kN, limiting speed 4800 rpm, weight 0.059 kg.
The thick-walled outer ring runs directly on a track or cam, no housing is needed. It carries radial load, often with a significant shock component.
Where it is used
Cam mechanisms and copying templates, linear guides, roller tables and conveyors, packaging and stamping machines, telescopic booms. Mounted on a stud or on an axle in a yoke, depending on the design.
When not to use
It does not replace an ordinary radial bearing fitted between shaft and housing: its load rating is calculated for the ring rolling on a track, not for uniform support around the whole circumference. The reverse swap is wrong too: the thin outer ring of an ordinary bearing run on a rail will be dented.
Technical data is for information only. Drawings may not show all design features.
