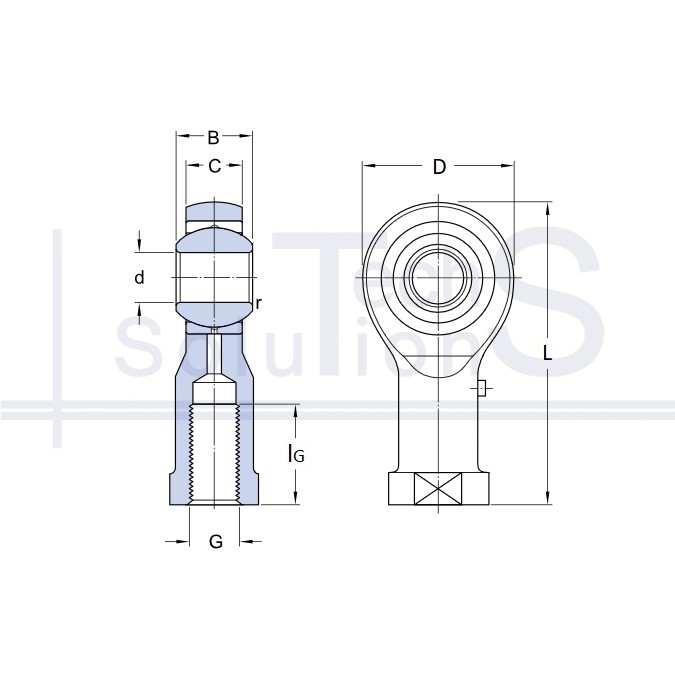

Rod end SIKAC 16 M SKF 16 × 43 × 21 mm
d 16 mm bore
D 43 mm outside diameter
B 21 mm width
Specifications
SIKAC 16 M SKF
- Designation
- SIKAC 16 M
- Manufacturer
- SKF
- Inner diameter d
- 16 mm
- Outer diameter D
- 43 mm
- Width B
- 21 mm
- Dynamic load rating C
- 21.6 kN
- Static load rating C0
- 29 kN
- Weight
- 0.22 kg
- Chamfer radius r
- 0.3 mm
- Height L
- 86 mm
- Thread length lg
- 24 mm
- G thread
- M16
- Rod end thread
- With internal right-hand thread
- Outer ring width C
- 15.5 mm
SELLER
Tech Solutions Sp. z o.o.
In the KRS register since 2012 verify ↗
KRS 0000429411 · entered 09.08.2012
Łódź, same address since 2014
ul. Wersalska 47/75, lok. 181, 91-212 Łódź
EU VAT number active verify ↗
PL7292701947
Financial statements with auditor's opinion verify ↗
For 2016–2025, no entries on debts or liquidation (as of 09.2026)
Product summary
SIKAC 16 M: rod end, brand SKF. Bore diameter d 16 mm, outside diameter D 43 mm, width B 21 mm. Dynamic load rating C 21.6 kN, static load rating C0 29 kN, weight 0.22 kg.
Technical data is for information only. Drawings may not show all design features.
