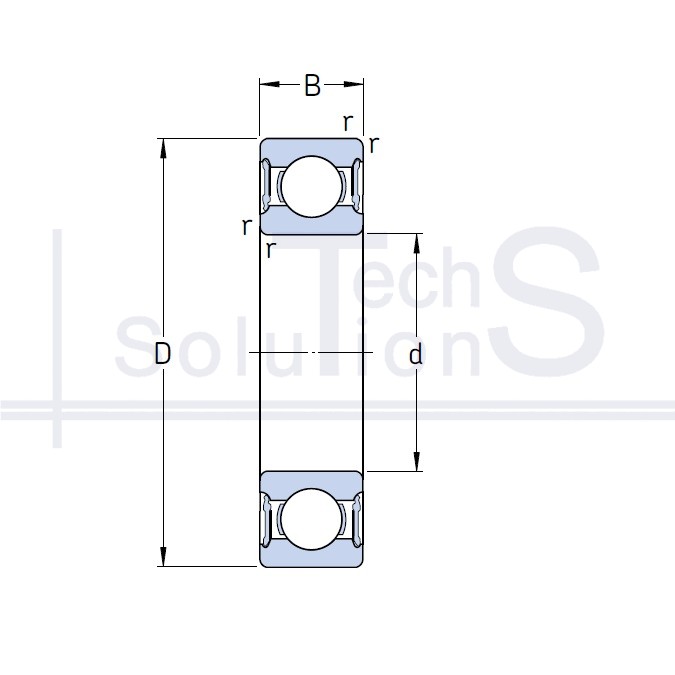

Radial ball bearing 61801 2RS1 SKF 12 × 21 × 5 mm
Specifications
61801 2RS1 SKF
- Designation
- 61801 2RS1
- Manufacturer
- SKF
- Inner diameter d
- 12 mm
- Outer diameter D
- 21 mm
- Width B
- 5 mm
- Dynamic load rating C
- 1.74 kN
- Static load rating C0
- 0.915 kN
- Limiting speed
- 20 000 rpm
- Seal
- Contact seal on both sides
- Weight
- 0.006 kg
- Chamfer radius r
- 0.3 mm
- Rolling elements
- Ball bearings
- Load type
- Radial
Product summary
61801 2RS1: deep groove ball bearing, brand SKF. Bore diameter d 12 mm, outside diameter D 21 mm, width B 5 mm. Seal: contact on both sides. Dynamic load rating C 1.74 kN, static load rating C0 0.915 kN, limiting speed 20 000 rpm, weight 0.006 kg.
Carries radial load and, to some extent, axial load in both directions. The most widely used bearing type: low friction torque and a high limiting speed.
Where it is used
Rotor supports in electric motors, fan and centrifugal pump shafts, intermediate shafts of helical gearboxes, conveyor idlers. In other words, assemblies where the shaft is rigid, the supports are aligned by machined housing bores and the load is moderate and mainly radial.
When not to use
Do not fit it instead of a tapered roller or angular contact bearing where a constant axial load is present: the ball climbs to the edge of the groove, the edge cuts off the contact area and the raceway spalls long before the calculated life. Do not fit it instead of a spherical roller bearing on misaligned supports: the permissible misalignment of a deep groove is measured in minutes of arc, not degrees, so a deflecting shaft will jam the bearing.
Technical data is for information only. Drawings may not show all design features.
