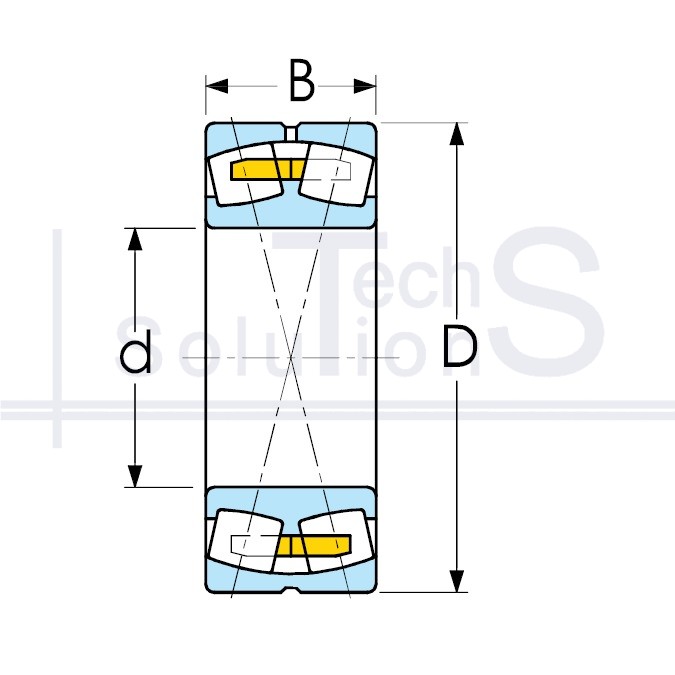

Spherical roller radial bearing 22230 MBW33 NTE 150 × 270 × 73 mm
Specifications
22230 MBW33 NTE
- Designation
- 22230 MBW33
- Manufacturer
- NTE
- Inner diameter d
- 150 mm
- Outer diameter D
- 270 mm
- Width B
- 73 mm
- Dynamic load rating C
- 850 kN
- Static load rating C0
- 1 080 kN
- Limiting speed
- 2 000 rpm
- Nominal speed
- 1 200 rpm
- Weight
- 18 kg
- Rolling elements
- Spherical roller bearings
- Load type
- Radial
- Number of rows
- Double-row
- Mounting hole
- Cylindrical
Product summary
22230 MBW33: spherical roller bearing, brand NTE. Bore diameter d 150 mm, outside diameter D 270 mm, width B 73 mm. Dynamic load rating C 850 kN, static load rating C0 1080 kN, limiting speed 2000 rpm, weight 18 kg.
Two rows of barrel-shaped rollers on the spherical raceway of the outer ring: high load capacity combined with compensation of misalignment. For heavy and shock loads at low and medium speeds.
Where it is used
Vibrating screens and sieves, belt conveyor pulleys, crushers, mills, high-power fans, long line shafts that deflect. The spherical outer raceway compensates for misalignment of supports in a welded frame that cannot be corrected by machining.
When not to use
Do not fit it instead of a deep groove ball bearing in a high-speed assembly: in the same size, a spherical roller bearing can have a limiting speed several times lower, so the assembly will overheat and push grease out through the seals. The reverse swap costs even more: if the supports are misaligned, any rigid bearing will run on the edge of the raceway and start spalling within a few hundred hours.
Technical data is for information only. Drawings may not show all design features.
