Radial spherical plain bearing GEZ 200 ES 2RS SKF 50.08 × 80.963 × 44.45 mm

Code 00000022997
B2B catalogue →
= 6V5002 CAT +1 cross reference SKF Partner Certificate

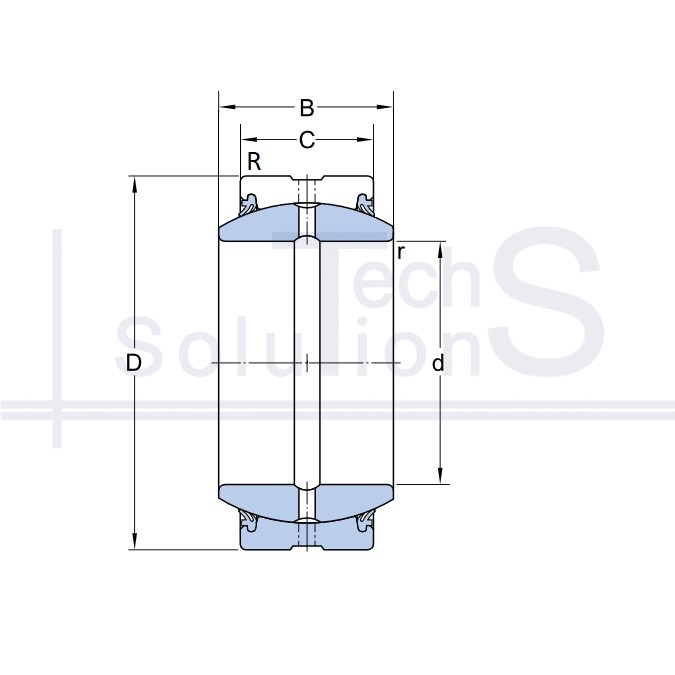

Radial spherical plain bearing GEZ 200 ES 2RS SKF 50.08×80.963×44.45 mm
d 50.08 mm bore
D 80.963 mm outside diameter
B 44.45 mm width

Specifications

GEZ 200 ES 2RS SKF

Designation
GEZ 200 ES 2RS
Manufacturer
SKF
Inner diameter d
50.08 mm
Outer diameter D
80.963 mm
Width B
44.45 mm
Dynamic load rating C
224 kN
Static load rating C0
670 kN
Seal
Contact seal on both sides
Weight
0.93 kg
Chamfer radius r
1 mm
Outer ring width C
38.1 mm
SELLER
Tech Solutions Sp. z o.o.
In the KRS register since 2012 verify ↗
KRS 0000429411 · entered 09.08.2012
Łódź, same address since 2014
ul. Wersalska 47/75, lok. 181, 91-212 Łódź
EU VAT number active verify ↗
PL7292701947
Financial statements with auditor's opinion verify ↗
For 2016–2025, no entries on debts or liquidation (as of 09.2026)

Product summary

GEZ 200 ES 2RS: spherical plain bearing, brand SKF. Bore diameter d 50.08 mm, outside diameter D 80.963 mm, width B 44.45 mm. Seal: contact on both sides. Dynamic load rating C 224 kN, static load rating C0 670 kN, weight 0.93 kg.

Technical data is for information only. Drawings may not show all design features.

About the technical data

* - Technical specifications and other information are provided for reference only. We provide this data and believe the information to be reliable, however, no guarantee of accuracy or completeness of such information can be provided.

- Drawings and images may not reflect all design features of the product.
