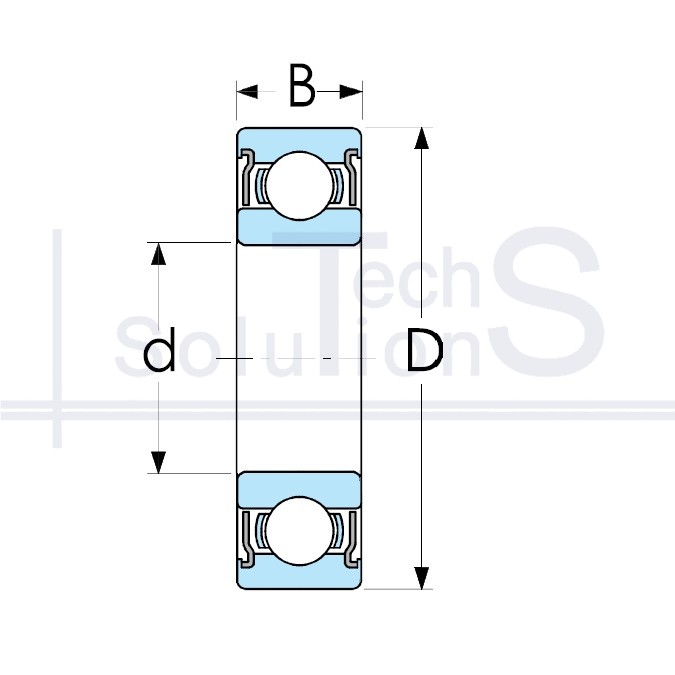

Miniature bearing 629 ZZ NTE 9 × 26 × 8 mm
Specifications
629 ZZ NTE
- Designation
- 629 ZZ
- Manufacturer
- NTE
- Inner diameter d
- 9 mm
- Outer diameter D
- 26 mm
- Width B
- 8 mm
- Dynamic load rating C
- 4.75 kN
- Static load rating C0
- 1.96 kN
- Limiting speed
- 30 000 rpm
- Nominal speed
- 60 000 rpm
- Seal
- Metal seal on both sides
- Weight
- 0.02 kg
- Rolling elements
- Ball bearings
- Load type
- Radial
Product summary
629 ZZ: miniature bearing, brand NTE. Bore diameter d 9 mm, outside diameter D 26 mm, width B 8 mm. Seal: metal on both sides. Dynamic load rating C 4.75 kN, static load rating C0 1.96 kN, limiting speed 30 000 rpm, weight 0.02 kg.
The same principle as a deep groove ball bearing, in sizes from tenths of a millimetre.
Where it is used
Micro motors, cooling fans, encoders and sensors, medical and dental instruments, hand-held power tools, feed drives, precision positioning mechanisms. Often made of stainless steel or with ceramic rolling elements for humidity and high speeds.
When not to use
Do not select by the bore diameter alone: metric and inch series sit side by side in this class (for example 6.35 mm and 6.00 mm). A mistake gives either an interference fit that jams the bearing and takes up its clearance, or a ring that creeps on the shaft.
Technical data is for information only. Drawings may not show all design features.
