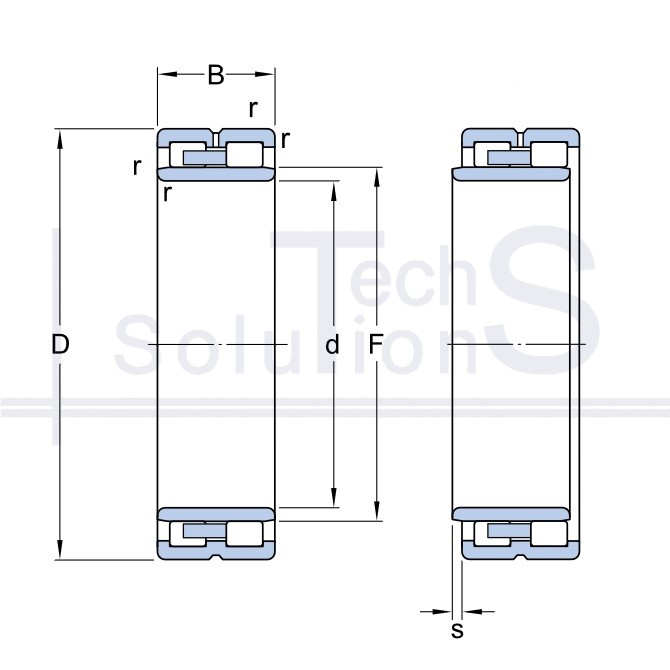

Cylindrical roller radial bearing NNU 4156 M SKF 280 × 460 × 180 mm
Specifications
NNU 4156 M SKF
- Designation
- NNU 4156 M
- Manufacturer
- SKF
- Inner diameter d
- 280 mm
- Outer diameter D
- 460 mm
- Width B
- 180 mm
- Dynamic load rating C
- 2550 kN
- Static load rating C0
- 4 750 kN
- Limiting speed
- 1 500 rpm
- Nominal speed
- 1 200 rpm
- Weight
- 120 kg
- Chamfer radius r
- 5 mm
- Rolling elements
- Roller cylindrical
- Load type
- Radial
- Internal generatrix F
- 326 mm
- Permissible axial displacement s
- 6.3 mm
Product summary
NNU 4156 M: cylindrical roller bearing, brand SKF. Bore diameter d 280 mm, outside diameter D 460 mm, width B 180 mm. Dynamic load rating C 2550 kN, static load rating C0 4750 kN, limiting speed 1500 rpm, weight 120 kg.
Line contact between the roller and the raceway gives a high radial load capacity and resistance to shock loads. The rings are separable, which makes mounting and dismounting easier.
Where it is used
Floating bearing for gearbox, transmission and large electric motor shafts, roll necks, assemblies that need high radial stiffness. Designs N and NU let the shaft expand freely as it heats up, while NJ and NUP locate it in one or both directions.
When not to use
Do not fit it instead of a tapered roller or angular contact bearing: designs N and NU carry no axial load at all. The shaft will shift along its axis, the roller ends will run against the ring ribs, causing heat and scoring. The reverse swap is wrong too: the bearing is not self-aligning, and misaligned supports move the roller contact to the edge of the raceway.
Technical data is for information only. Drawings may not show all design features.
